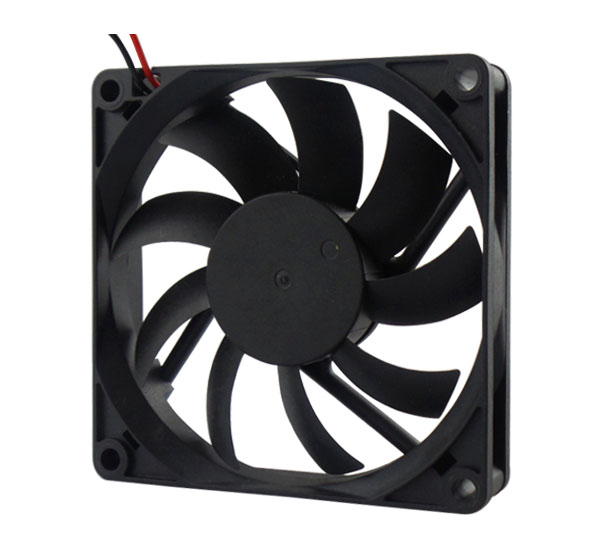

12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

Shenzhen Zhisheng Technology Co., Ltd
Contact Now
    Buy cheap 12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan from wholesalers

    Buy cheap 12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan from wholesalers
    • Buy cheap 12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan from wholesalers
    • Buy cheap 12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan from wholesalers
    • Buy cheap 12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan from wholesalers

    12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

    Ask Lasest Price
    Model Number : ZS
    Certification : UL,ROHS,CE,ISO9001
    Price : $0.47-$2.89
    Delivery Time : 7-10 days
    Payment Terms : T/T
    Supply Ability : 1000,000pcs
    Brand Name : ZS
    • Product Details
    • Company Profile

    12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

    12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

    Material:

    Frame and Impeller: Thermal Plastic UL 94-0
    Lead Wires:UL Type
    RED Wire Positive(+)
    BLACK Wire Negative(-)
    Insulation Resistance: 10MΩ Or Over With a DC 250V Megger
    Dielectric Withstand Voltage: AC500V 1S
    Allowable Ambient Temperature Range:-10ºC~+70ºC(Operating)

    -40ºC~+70ºC(Storage)

    12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

    Specification:

    * this is normal specification, for the speed, current, bearing type, connector, function, waterproof level, wires etc all can be customized.

    Model Bearing Rated Operation Current Input Speed Air Flow Static Niose Weight
    System Voltage Voltage power Pressure Level
    (V) (V) (A) (W) (RPM) (CFM) (mm-H2O) (dB-A) (g)
    (型号) (培林) (电压) (电压范围) (电流) (功率) (转速) (风量) (静压) (噪音) (重量)
    8015 12 10.8~13.2 0.17 2.04 3000 30.16 2.38 2.38 57
    Sleeve 0.12 1.44 2500 24.89 1.69 1.69 57
    0.08 0.96 2000 18.99 1.03 1.03 57
    0.17 2.04 3000 30.16 2.38 2.38 57
    Ball 0.12 1.44 2500 24.89 1.69 1.69 57
    0.08 0.96 2000 18.99 1.03 1.03 57
    24 21.6~26.4 0.11 2.64 3000 30.16 2.38 2.38 57
    Sleeve 0.08 1.92 2500 24.89 1.69 1.69 57
    0.05 1.20 2000 18.99 1.03 1.03 57
    0.11 2.64 3000 30.16 2.38 2.38 57
    Ball 0.08 1.92 2500 24.89 1.69 1.69 57
    0.05 1.20 2000 18.99 1.03 1.03 57

    Functions:


    PWM (Pulse Width Modulation)
    FG (Frequency Generator / Tachometer)
    RD (Rotation Detector)
    AR (Auto Restart)
    TC (Thermal Control)

    Protection: waterproof Up to IP 68

    *** 2 lead wires, 3 lead wires,4 lead wires for your choice

    Others:

    1. Application


    1.Home appliance
    2.Kitchen
    3.Car industry
    4.Telecom
    5.Medical Equipment
    6.UPS Power
    7.LED Lighting
    8.Computer Case
    9.CPU
    10.Safty Equipment
    11.Office Electrics
    12.SUP Power
    13.Communication
    14.Printing Equipment
    15.Projector
    16.Digital Photoelectric
    17.Humidifier/Air Purifier
    18.Mining machine

    ...

    2 Shipping
    1. Be delivered by express (UPS, FedEx, DHL, TNT).
    2. Be shipped by vessel or by air or as customers'requirement.

    Advantages:

    1. Delivery lead time: 7-10 work days

    2. Reliable quality as well as Competitive price

    3. Function: FG,RD,PWM , Automatic Restart can be choice

    4. Waterproof grade: IPX1~IPX8, such as IP55,IP67,IP68

    5. OEM&ODM

    6. Certificate: CE/RoHS/UL/CCC

    7. Life Expectancy: Dual Ball Bearing 50000 hours ,Sleeve Bearing 3000 hours

    8. Dimension: 20mm-280mm Thickness: 7mm-38mm

    9. Best service by our sales and engineers

    Our products

    12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

    12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan

    Our Factory

    12v dc cooling fan motor 8015 two way fan 80*80*15mm dc small exhaust fan
